Powder Coating Oven Self-Assembly M - 90 x 60 x 54 cm | DIY Curing Oven
Powder Coating Oven Self-Assembly M - 90 x 60 x 54 cm | DIY Curing Oven
-
Voraussichtliche Lieferung: 29. May - 02. Jun
Ihre Zahlungsinformationen werden sicher verarbeitet. Wir speichern keine Kreditkartendaten und haben keinen Zugriff auf Ihre Zahlungsinformationen.

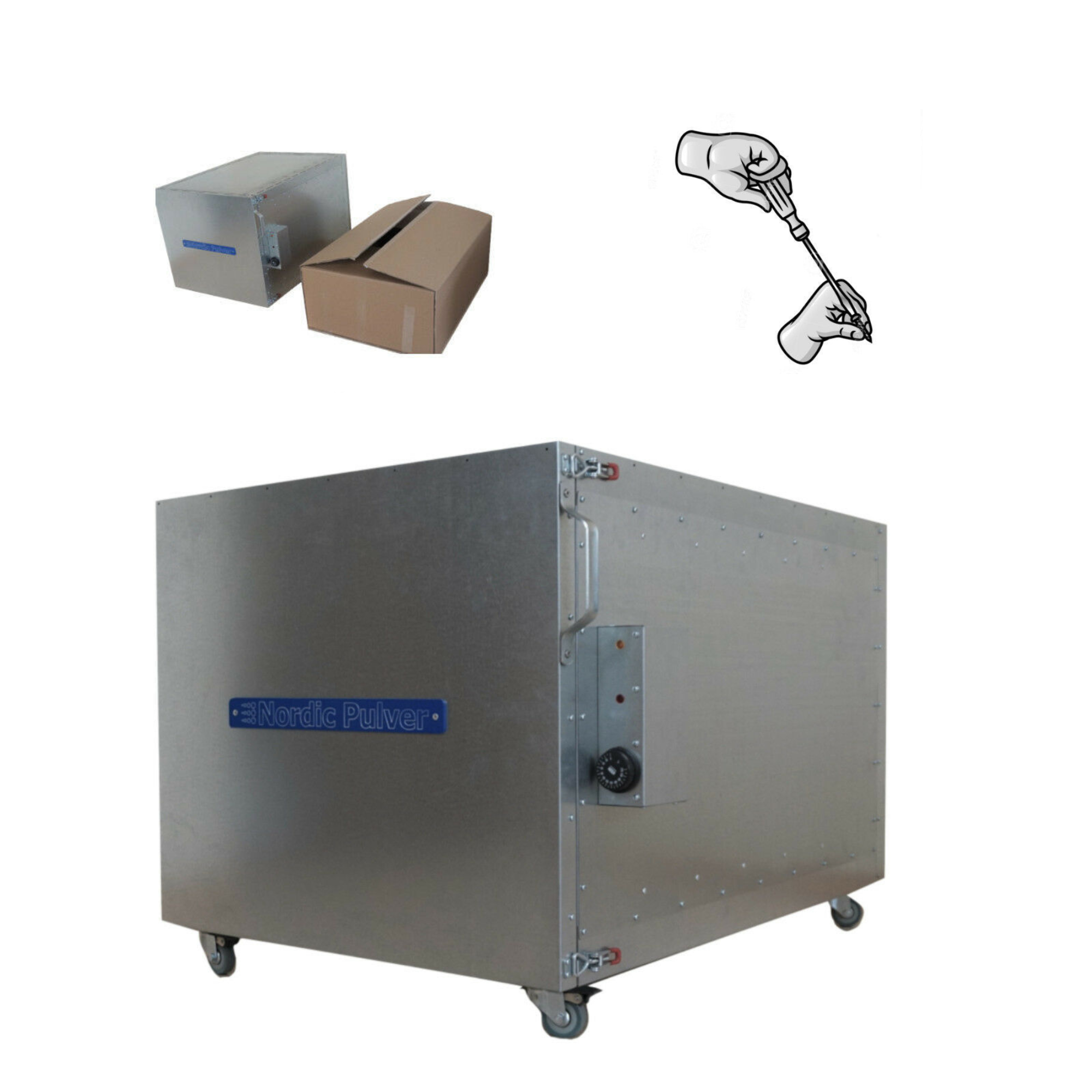

Professional technology without the premium price – savings through your own labor. Looking for professional curing results without the cost of factory assembly and bulky shipping? Our Model M Powder Coating Oven Kit is the smart choice for those who can do it themselves. By handling the final assembly of the housing, we offer this kit €150 cheaper than the pre-built version – with absolutely identical heating and control performance.
Why choose a Pulverkönig Kit?

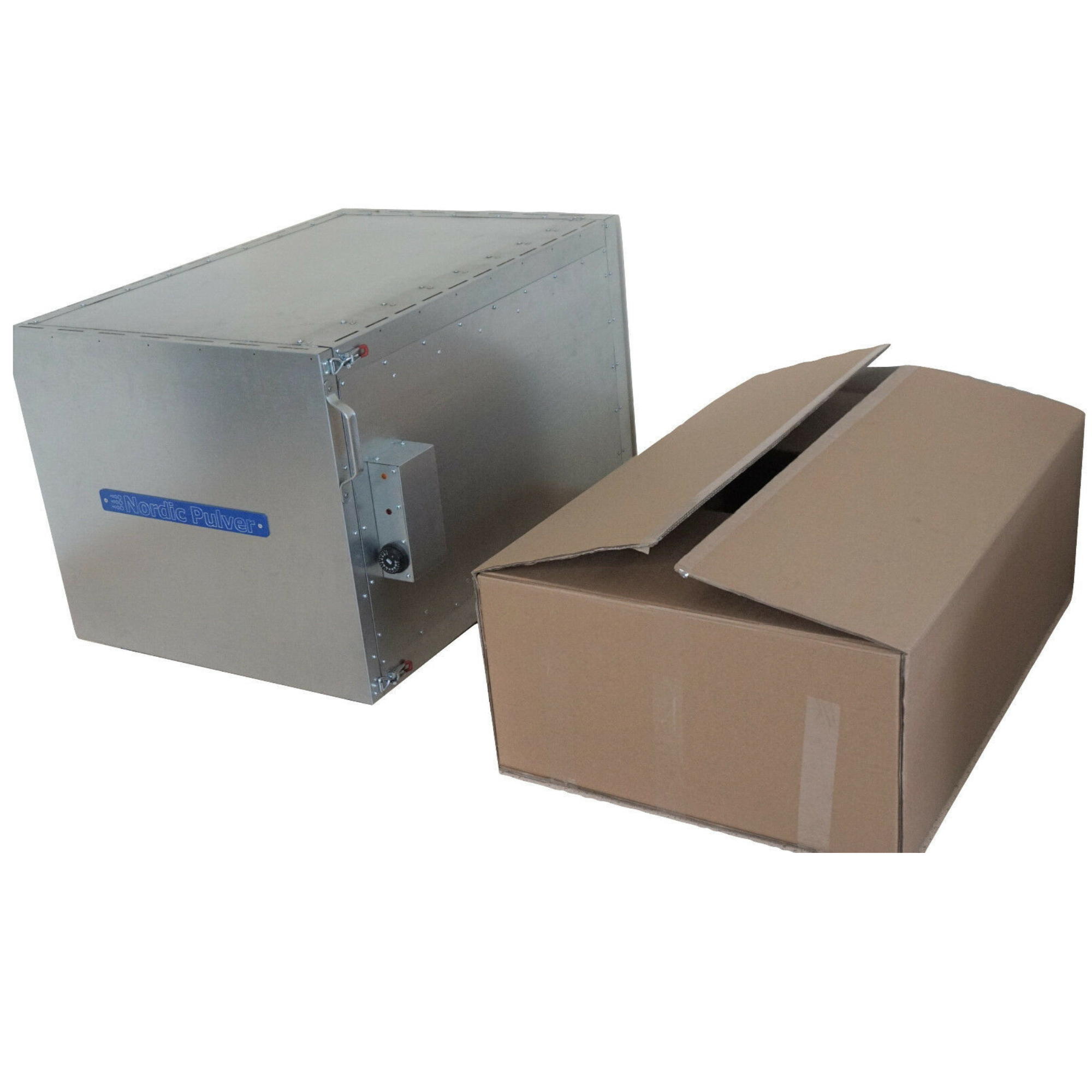

A Powder Coating Oven Kit is not a "light" product. You receive the exact same industrial-grade core components that we use in our pre-assembled ovens. By assembling it yourself, you eliminate factory labor costs and the expensive freight shipping of a pre-built unit is replaced by more compact, manageable packages.
- ✓ Identical Technology: Heating elements, digital controller, and electrical components are 1:1 the same as our pre-built Model M.
- ✓ Maximum Savings: Benefit from a €150 price advantage compared to the pre-assembled version.
- ✓ Workshop-Ready: Operates on any standard 230V Schuko outlet.
- ✓ Industrial Standard: Designed for 50mm industrial insulation (not included) to achieve maximum energy efficiency.
- ✓ Perfect For: Motorcycle parts, rim centers, bicycle frames, and small-batch production.
Assembly & Results: See how it works
To ensure a smooth build, we have documented the process for you. The first video provides a step-by-step assembly guide, while the second video showcases the finished oven in action.
1. Instructions: DIY Assembly Guide
2. Showcase: The finished oven in operation
Technical Details at a Glance
| Specification | Value (after assembly) |
|---|---|
| External Dimensions (H x W x D) | 107 x 76 x 65 cm |
| Internal Dimensions (H x W x D) | 90 x 60 x 54 cm |
| Temperature Range | 0 – 220 °C (infinitely adjustable) |
| Heating Time | 20 °C to 180 °C in approx. 20 min. |

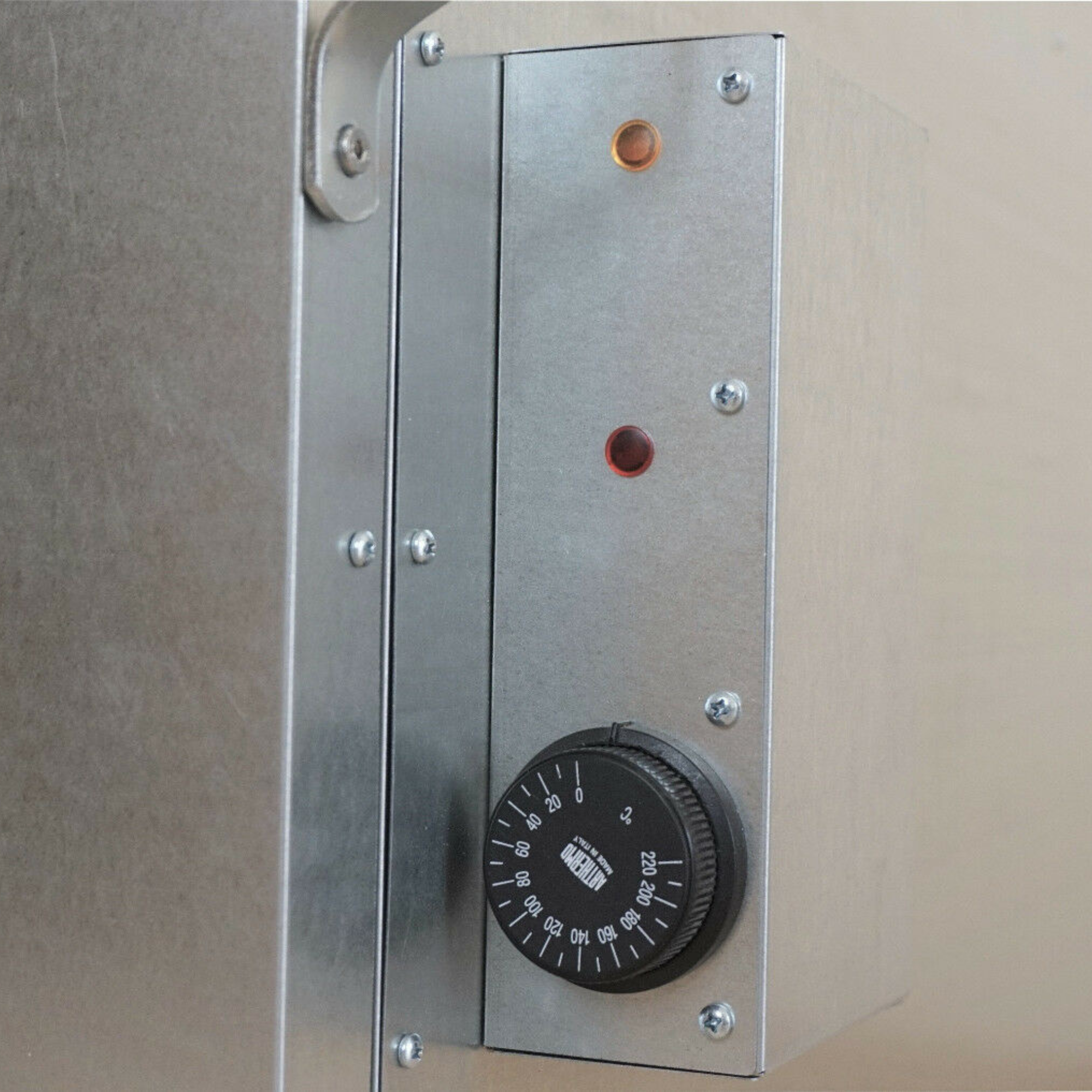

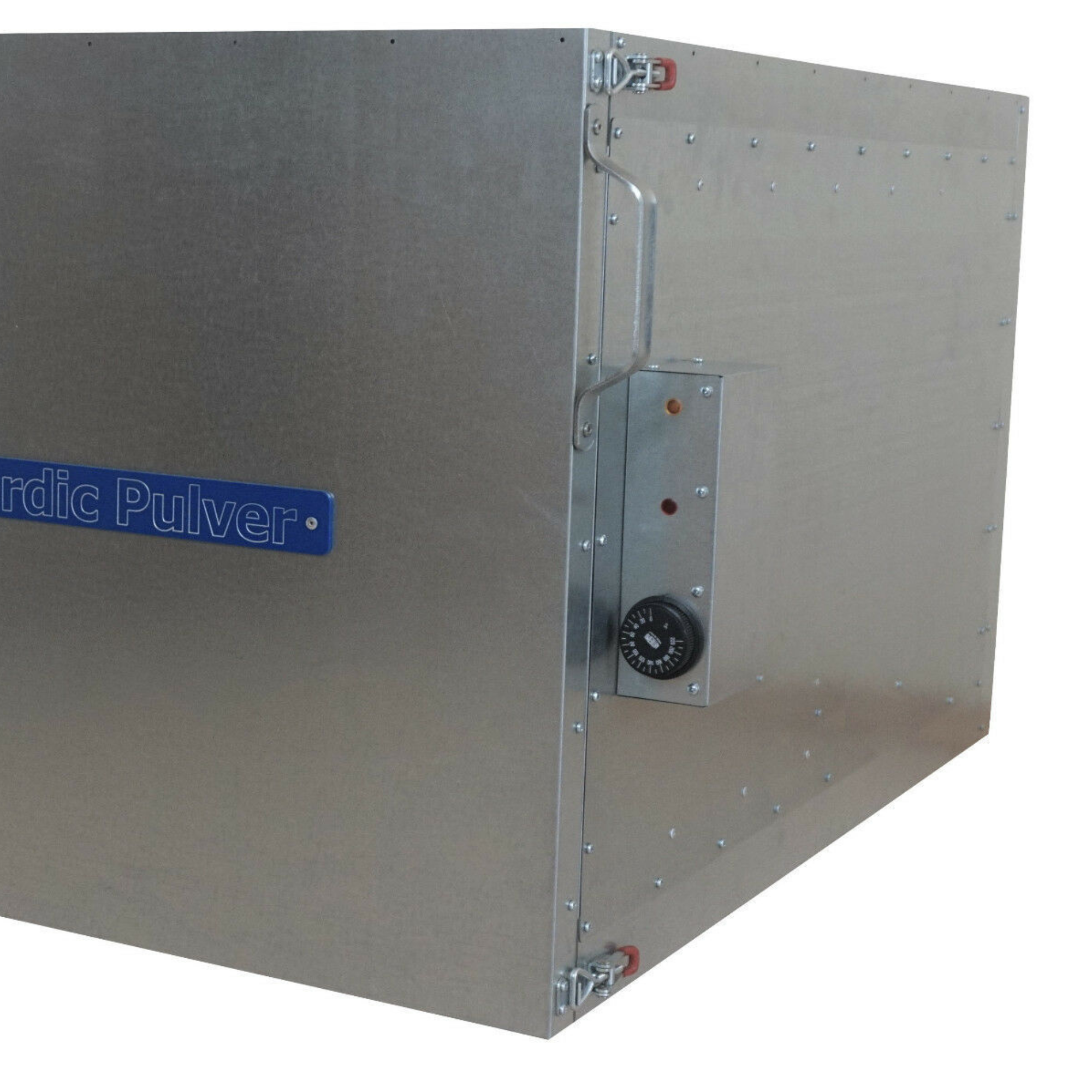

| Temperature Control | Analog Thermostat Controller |
| Power / Voltage | 2.0 kW / 230 V Single Phase (50 Hz) |
| Connector Plug | EU (Schuko) / UK |

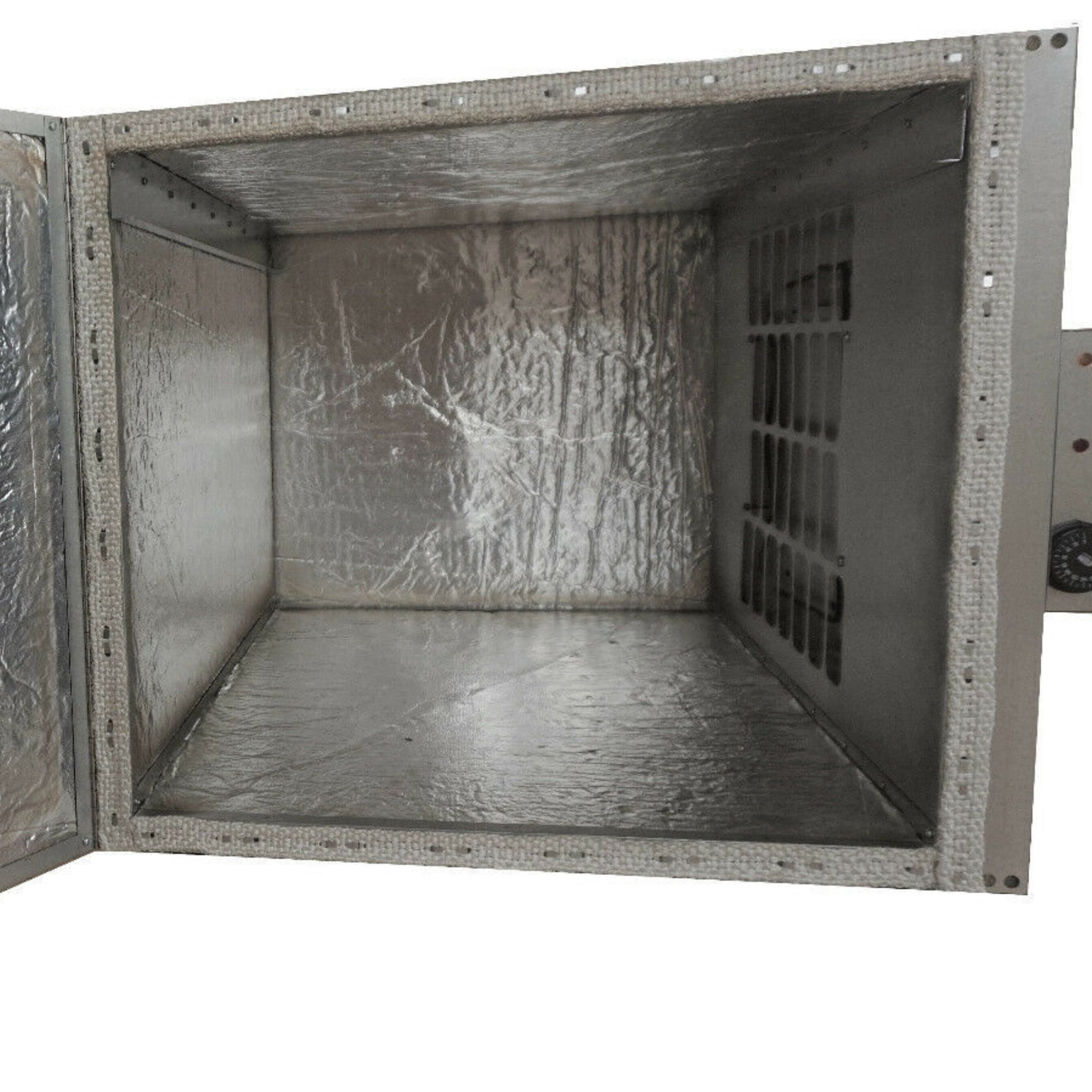

| Material & Insulation | Laser-cut galvanized steel; designed for 50mm insulation |
| Weight | approx. 70 kg |
| Origin / Safety | Made in Lithuania (CE certified) |
