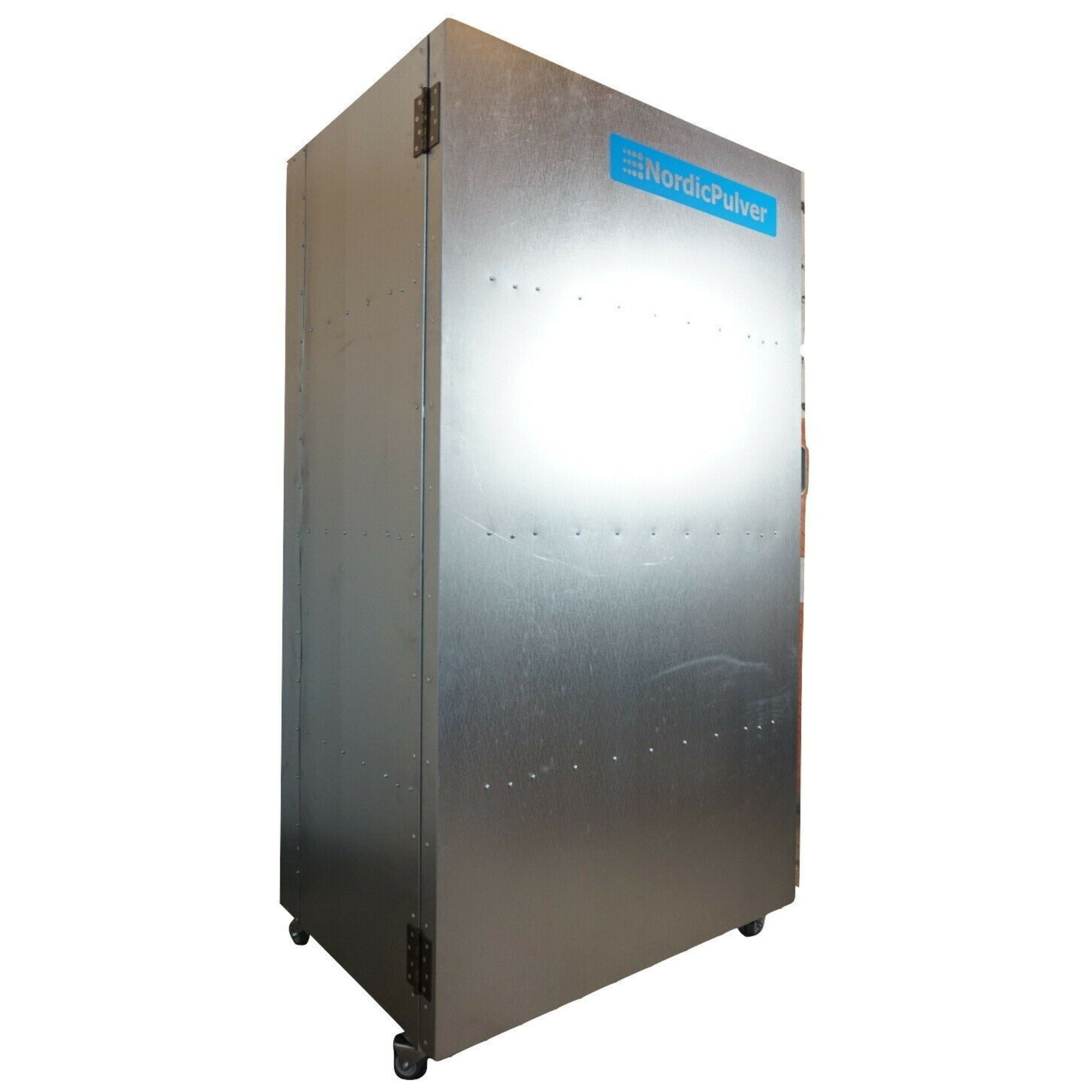

Powder Coating Oven XL – 160 x 85 x 60 cm | Professional Oven for Powder Coating Rims & Automotive
The Powder Coating Oven XL is the answer to the biggest challenge in powder coating: consistent heat across the entire component surface combined with maximum handling flexibility. With internal dimensions of 160 x 85 x 60 cm, this oven for powder coating is specifically tailored to the needs of vehicle customizers and industrial shops. Whether it’s a complete set of 21-inch rims, massive bumpers, or long bicycle frames – this oven provides the volume and precision that professionals expect.
Video: The Powder Coating Oven XL in detail – construction and function.

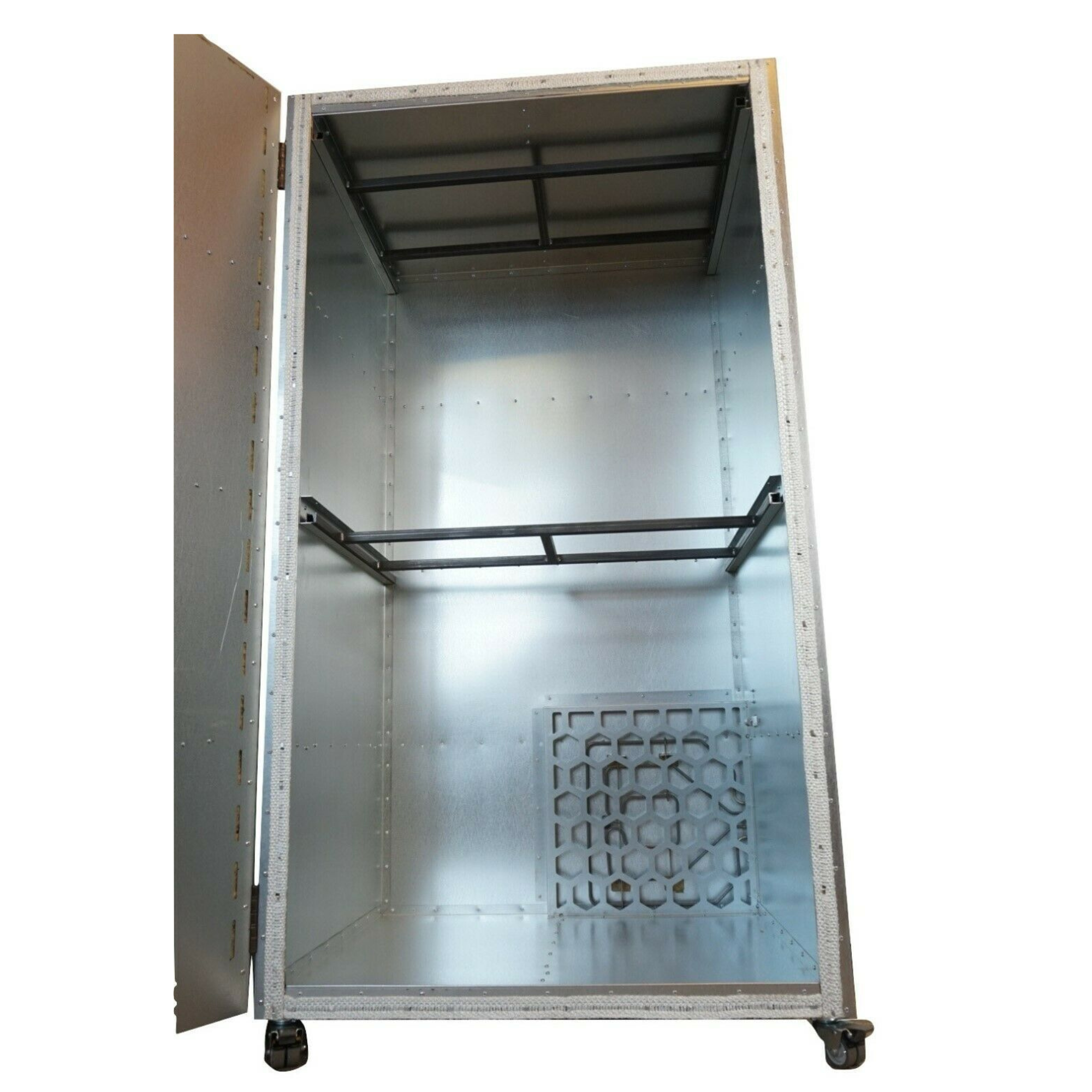

Maximum Efficiency through Intelligent Rail System
Saving time in the powder coating process starts with loading. The Powder Coating Oven XL is equipped with two integrated guide rails, allowing for ergonomic work on different levels. The following video demonstrates how efficiently rims can be coated using a matching frame and transferred directly into the oven:
Video: Workflow optimization – from the coating frame directly into the powder coating oven.
- Upper Rail: Ideal for long components like frames or hanging rims on tall hooks.
- Middle Rail: Perfect for small parts or flatter workpieces to optimize the internal space.
Technical Details at a Glance
| Specification | Value |
|---|---|
| External Dimensions (H x W x D) | 177 x 101 x 71 cm |
| Internal Dimensions (H x W x D) | 160 x 85 x 60 cm |
| Temperature Range | 0 – 220 °C |
| Heating Time | 20°C to 180°C in approx. 25 min. (220°C in 35 min.) |

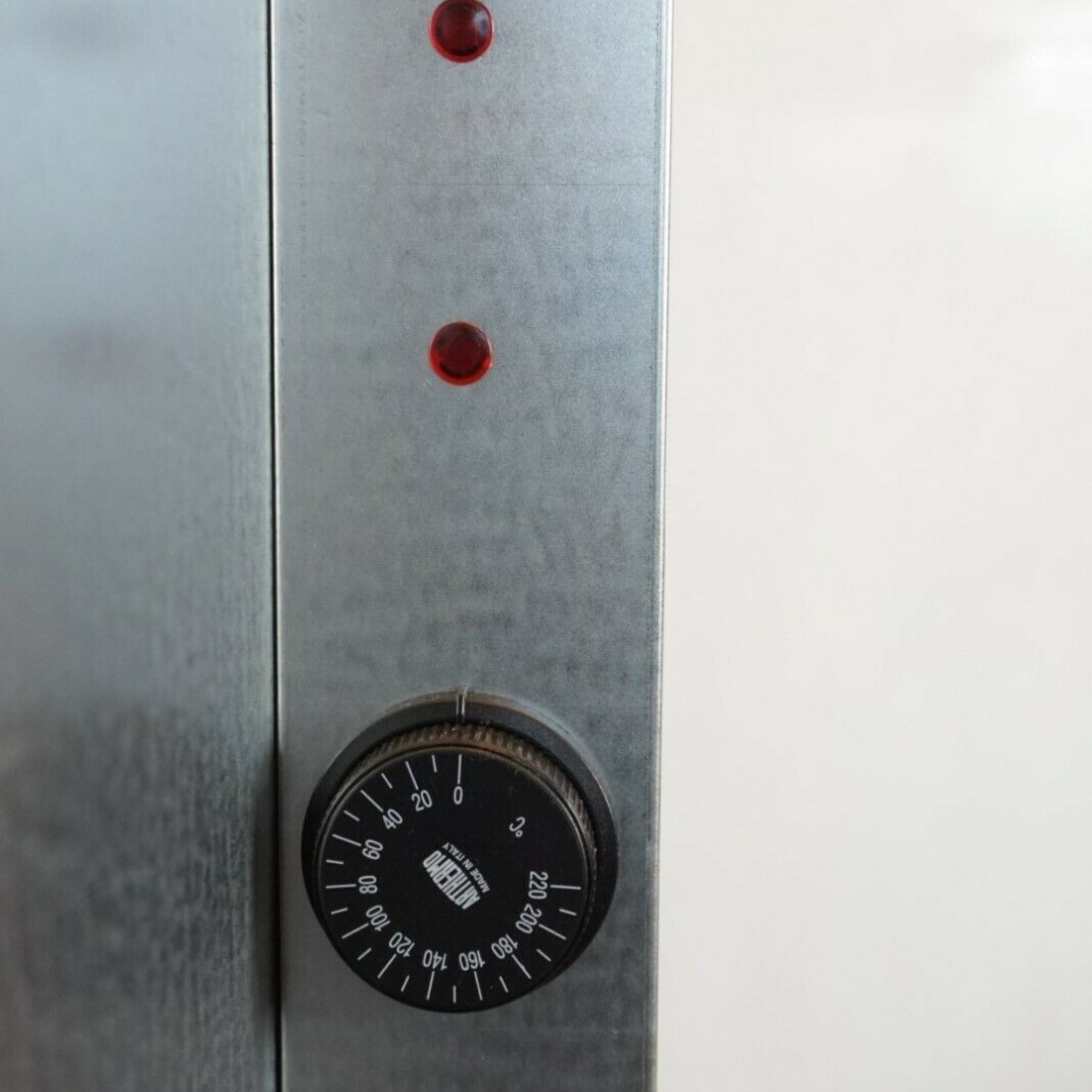

| Temperature Control | Analog thermostat controller |
| Power / Voltage | 2.8 kW / 230V Single Phase (50 Hz) |

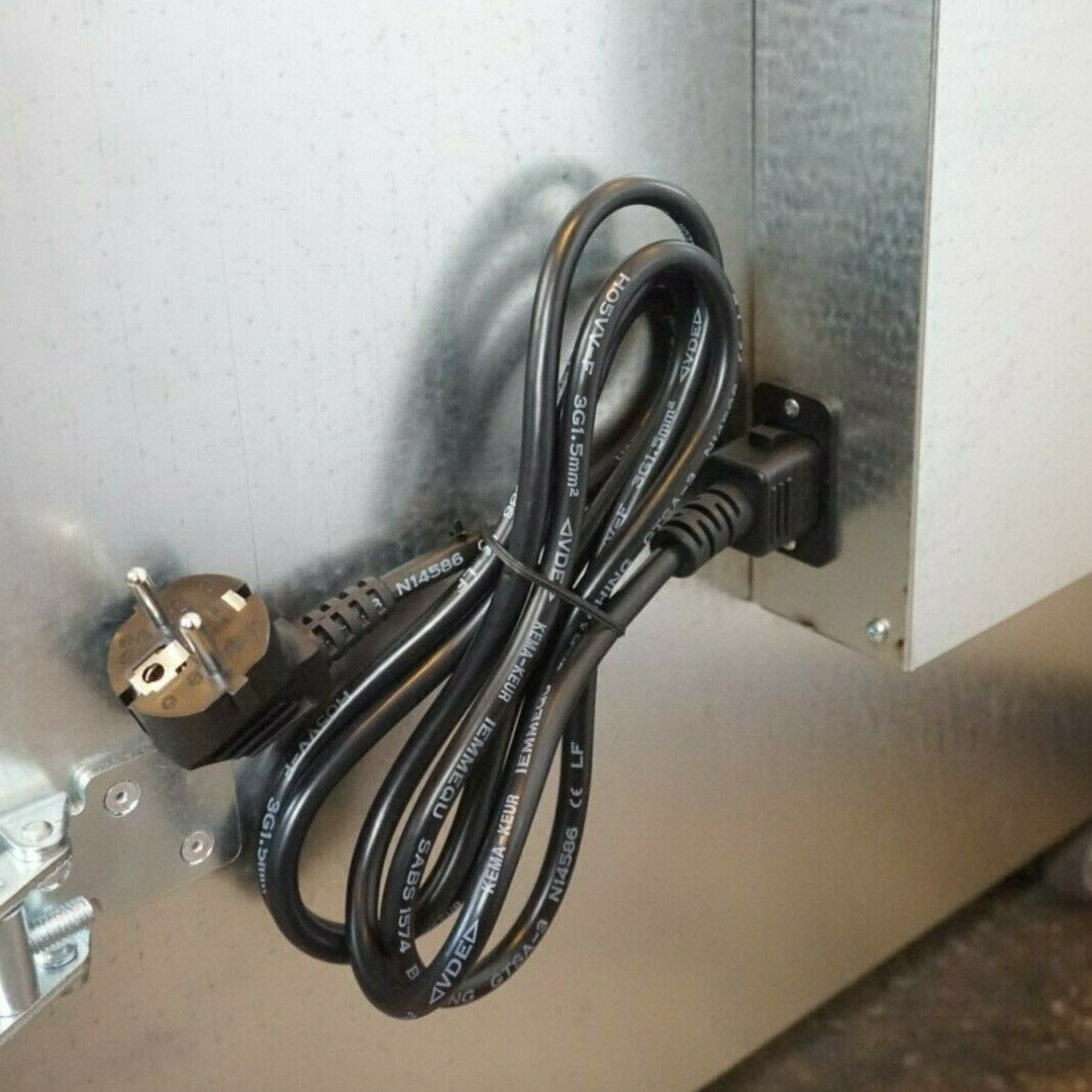

| Power Plug | EU (Schuko) |

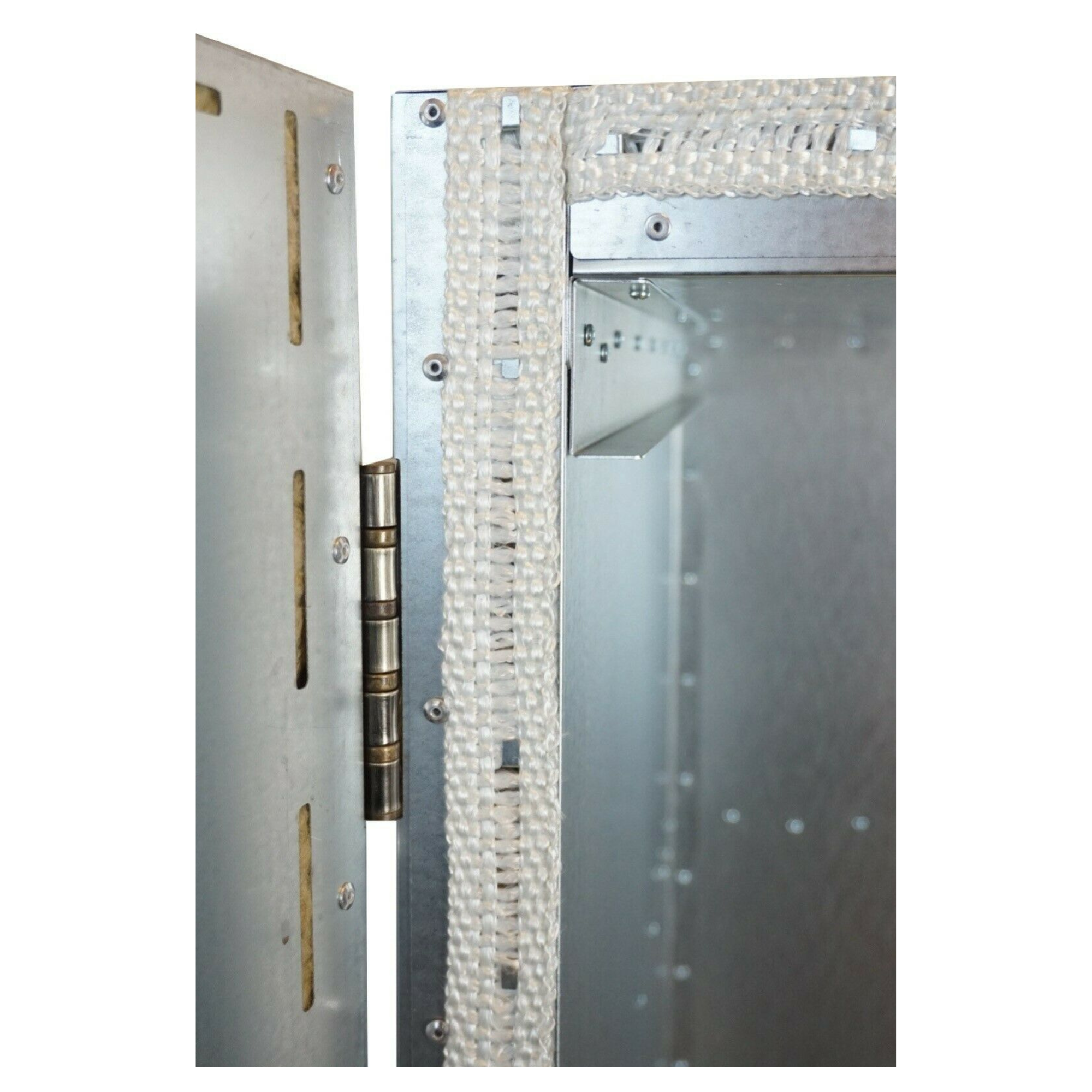

| Material & Insulation | Galvanized steel; 50 mm insulation |
| Weight | 120 kg |
| Origin / Safety | Manufactured in Lithuania (CE certified) |
Scope of Delivery – Ready for Immediate Use
We deliver the complete package for professional application:
- 1x Powder Coating Oven XL (fully assembled)
- 2x Workpiece Holders (matching the rail system)
- Operating Manual
Pro Tip on Object Temperature: The powder coating process only begins once the component itself has reached the target temperature. For precise process control, we recommend our self-adhesive oven thermometers.
Matching Accessories: Use our Pro Powder Coating Gun for application and specialized hooks for optimal rim hanging.
No complicated oven kit – set it up, plug it in, and start professional powder coating.
