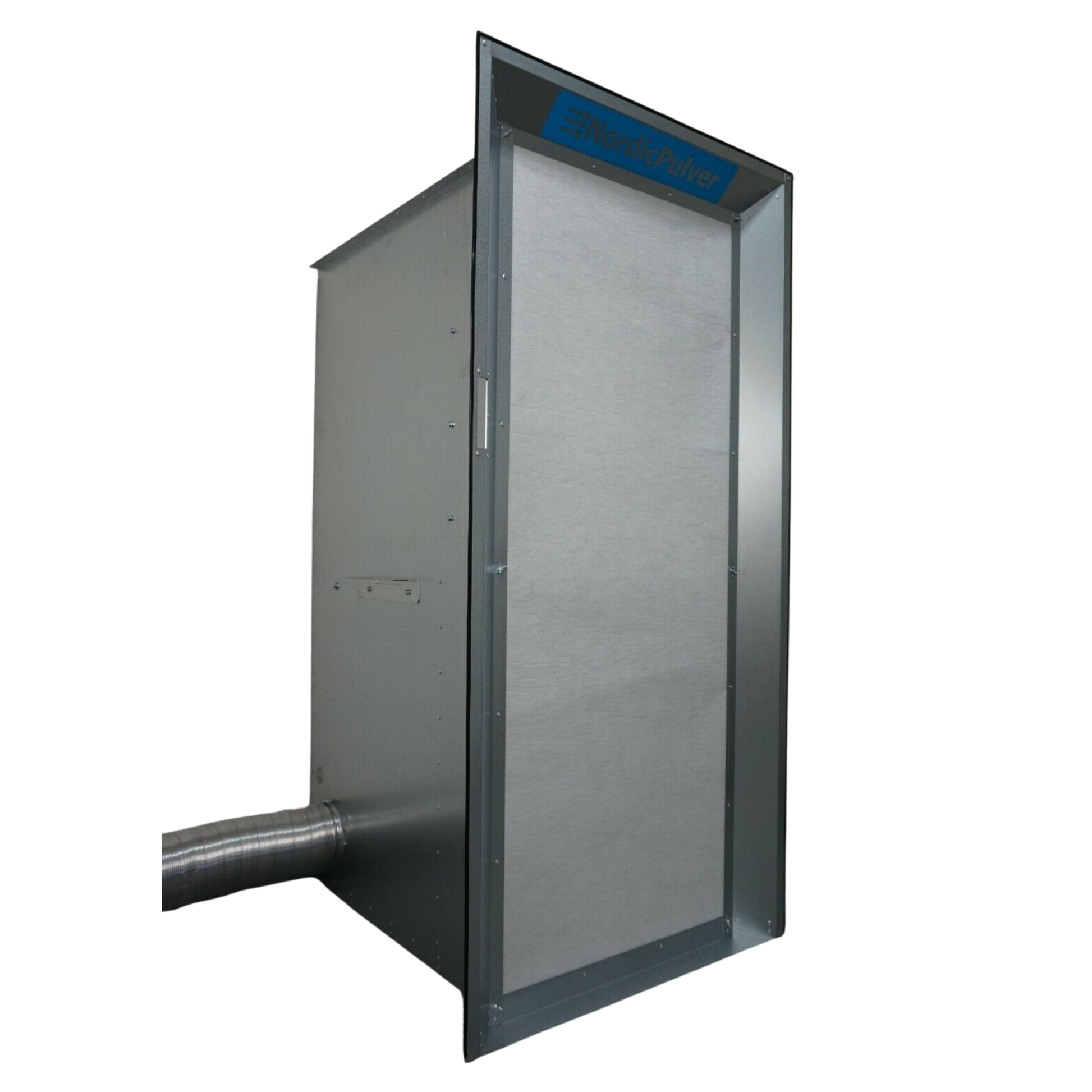

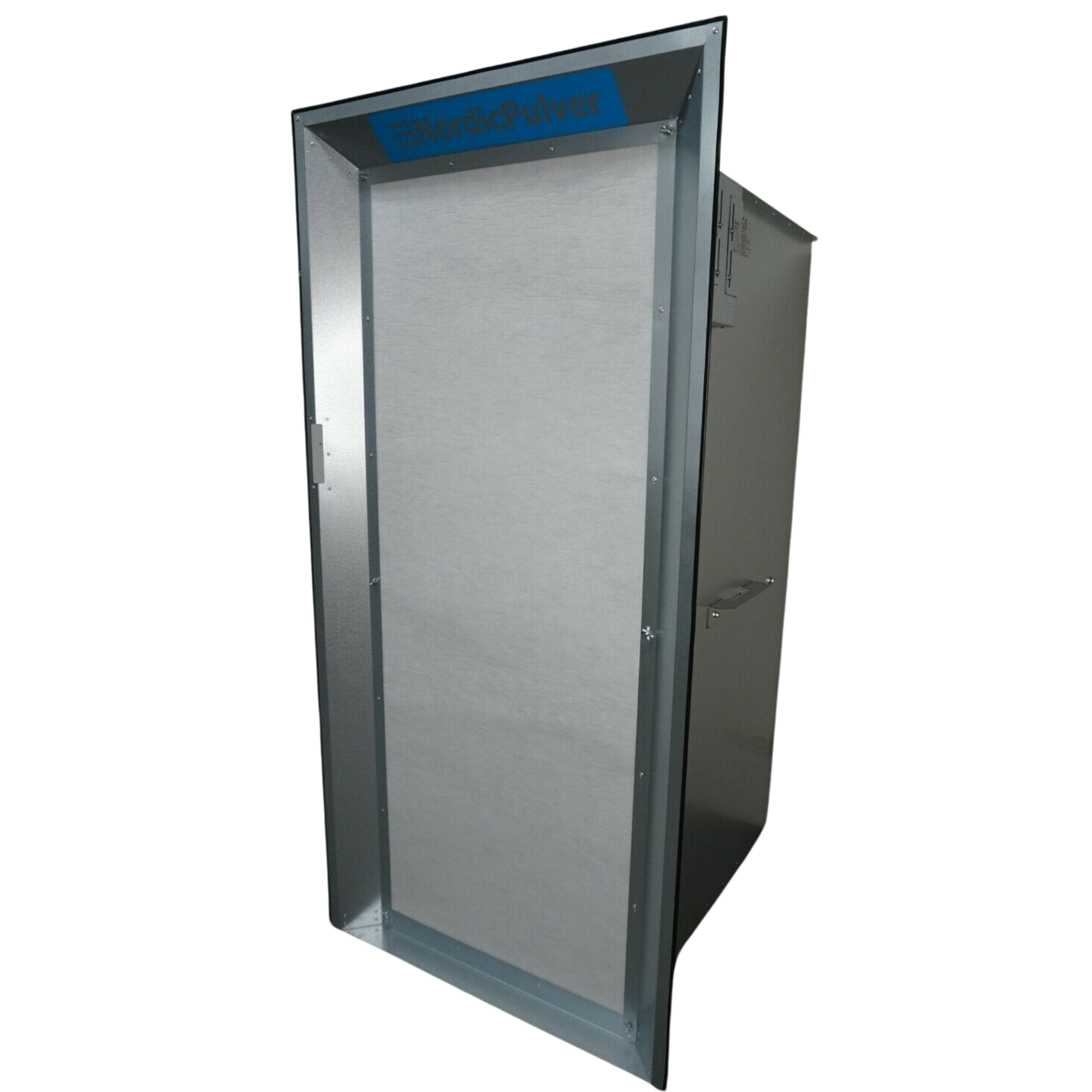

Professional Extraction System for Powder Coating and Wet Paint

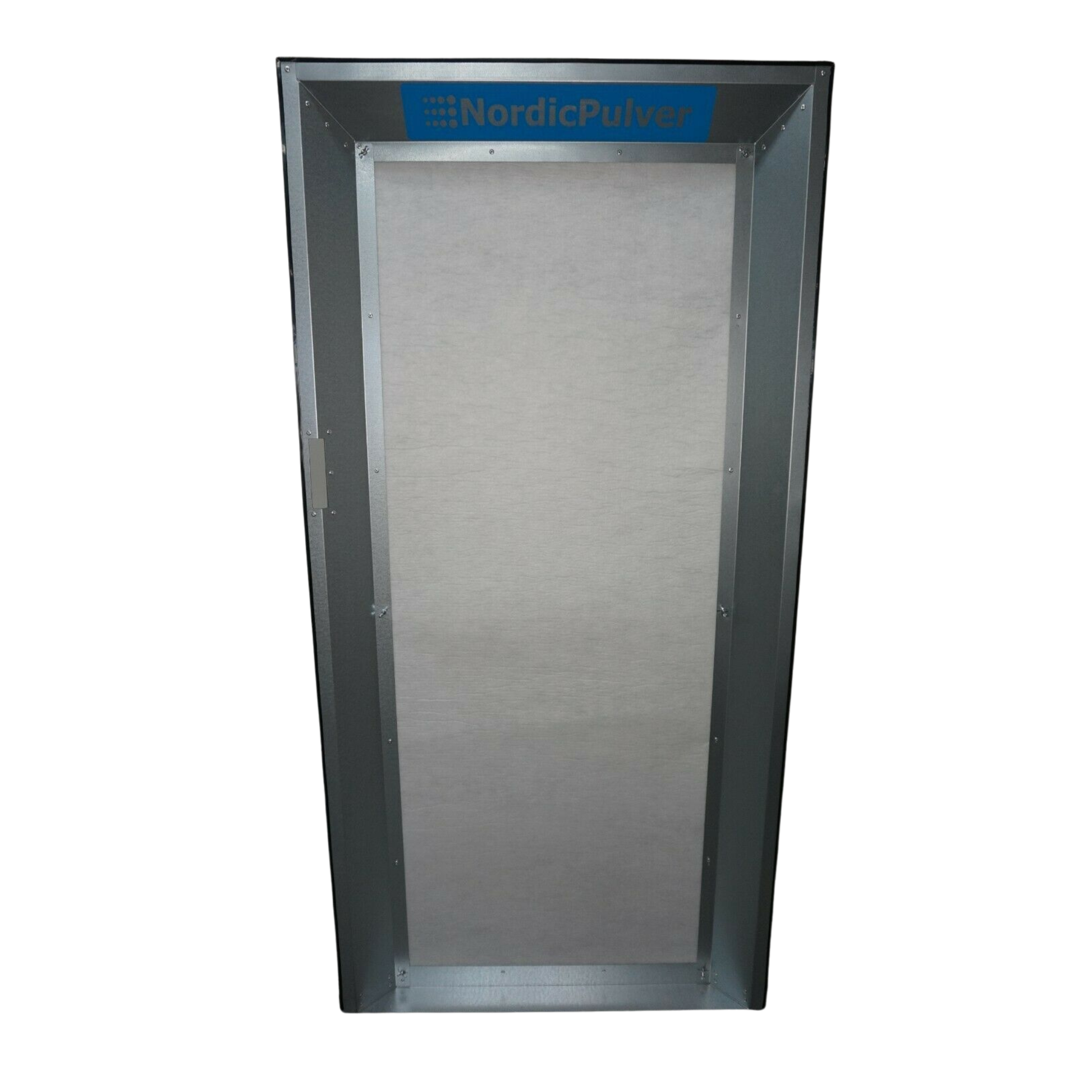

Clean air, flawless results – perfectly sized for your workshop. The Extraction Wall XL is the centerpiece of any professional powder coating booth. Anyone coating commercially or in the high-end DIY sector knows: without an effective extraction system, both your health and the quality of the finish suffer. Featuring a compact and well-thought-out footprint of 175 cm in height and 87 cm in width, this unit fits perfectly into medium to large workshops, while its solid weight of 70 kg ensures maximum stability during daily operations.
Product Demonstration Video
Heavy-Duty Performance for Metalwork & Workshops
This spray booth extraction wall is specifically designed for users who have outgrown makeshift setups. Whether you are a metal fabricator, a small powder coating shop, or a restorer – the XL system, equipped with the included 1500 m³/h high-performance fan, delivers the suction power required for wheel sets, frames, and larger components. Thanks to the highly efficient filtration system, you prevent powder dust from spreading throughout your workshop, **which massively reduces defect rates during the curing process in the oven**.
- ✓ Maximum Cleanliness: Highly effective extraction unit for powder coating and traditional painting tasks with a powerful 1500 m³/h airflow rate.
- ✓ Compact Professional Dimensions: At 175 cm high and 87 cm wide, it is ideally sized to deliver peak performance even in limited spaces.
- ✓ Dual-Use Technology: Can easily be converted into a wet paint extraction wall by simply switching or adding pre-filters.

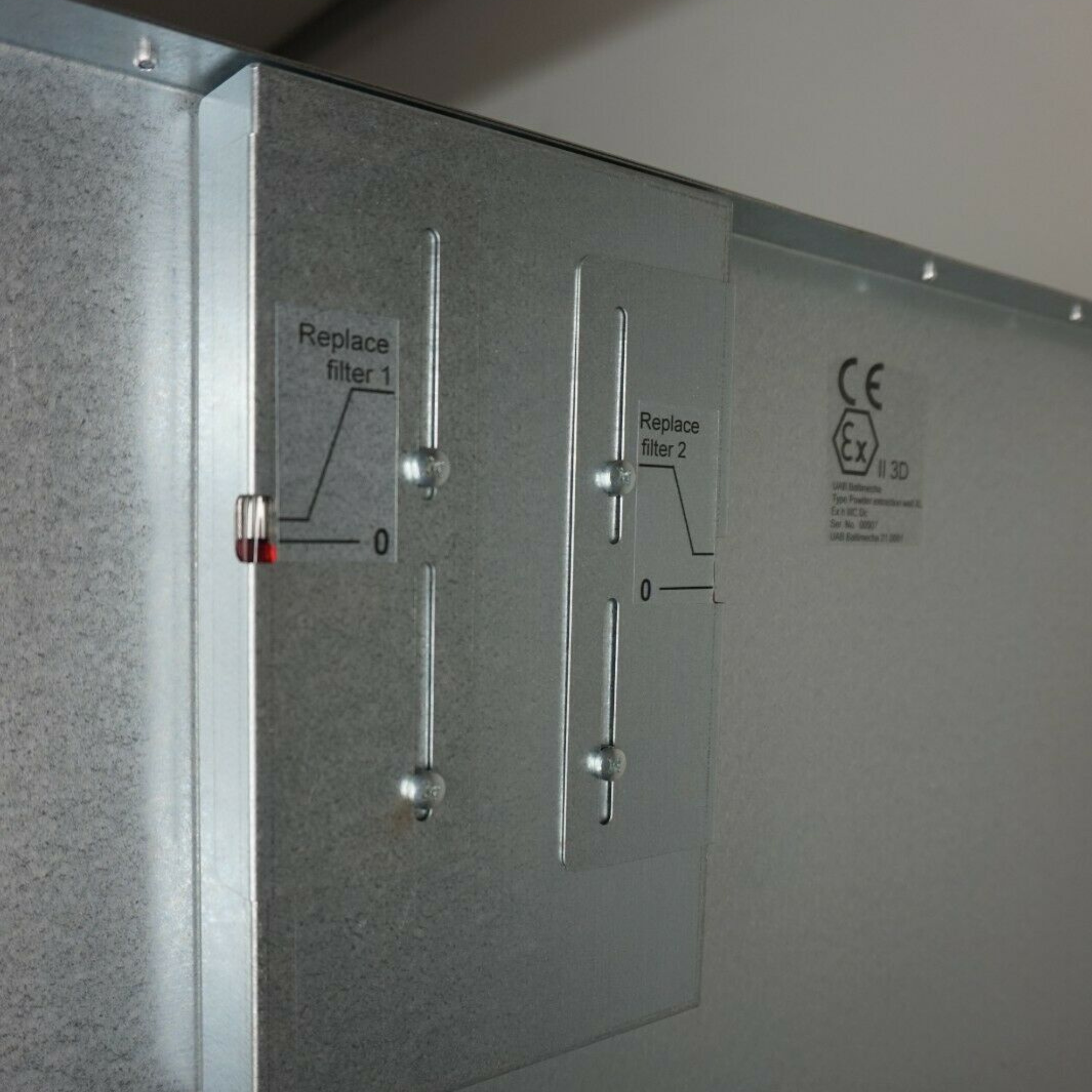

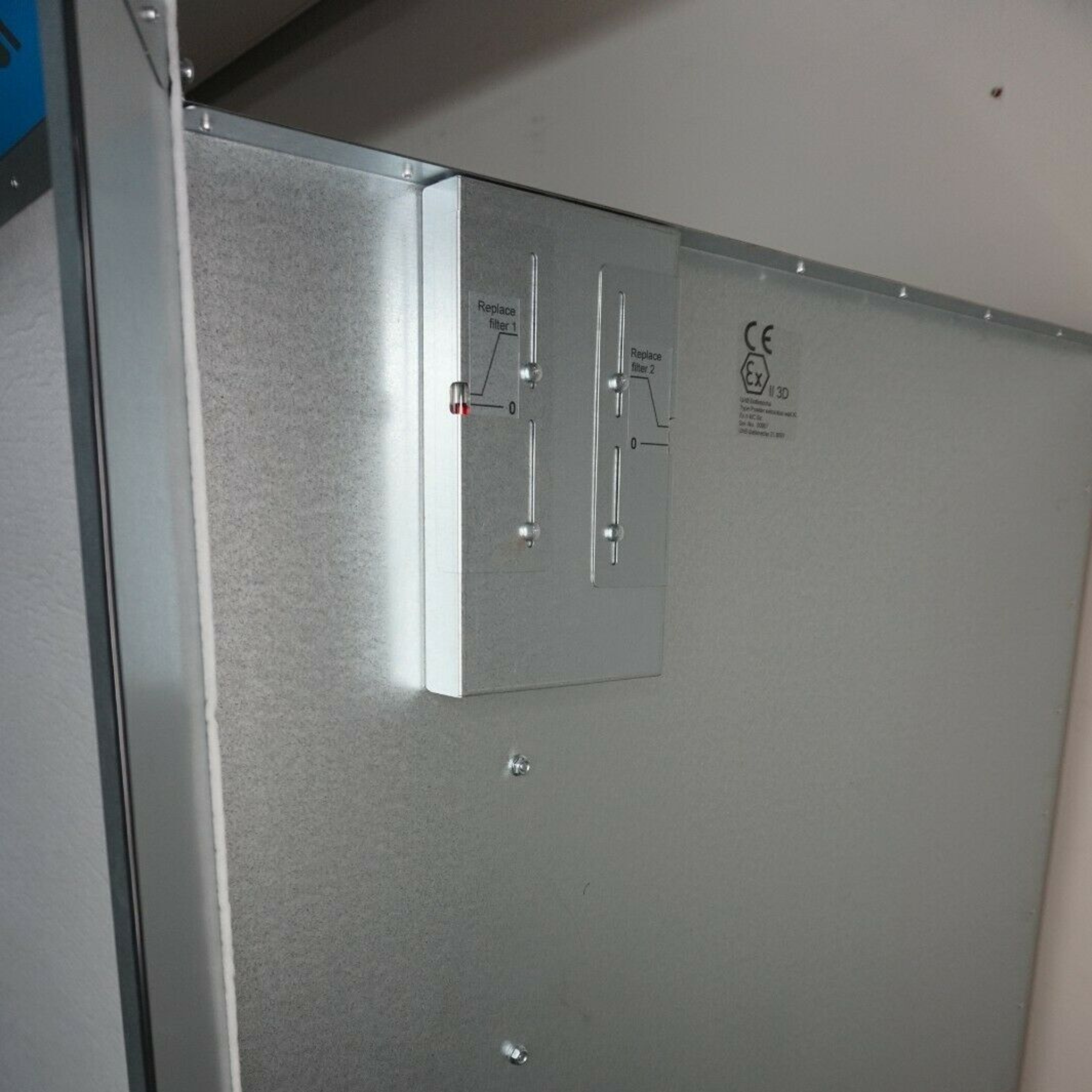

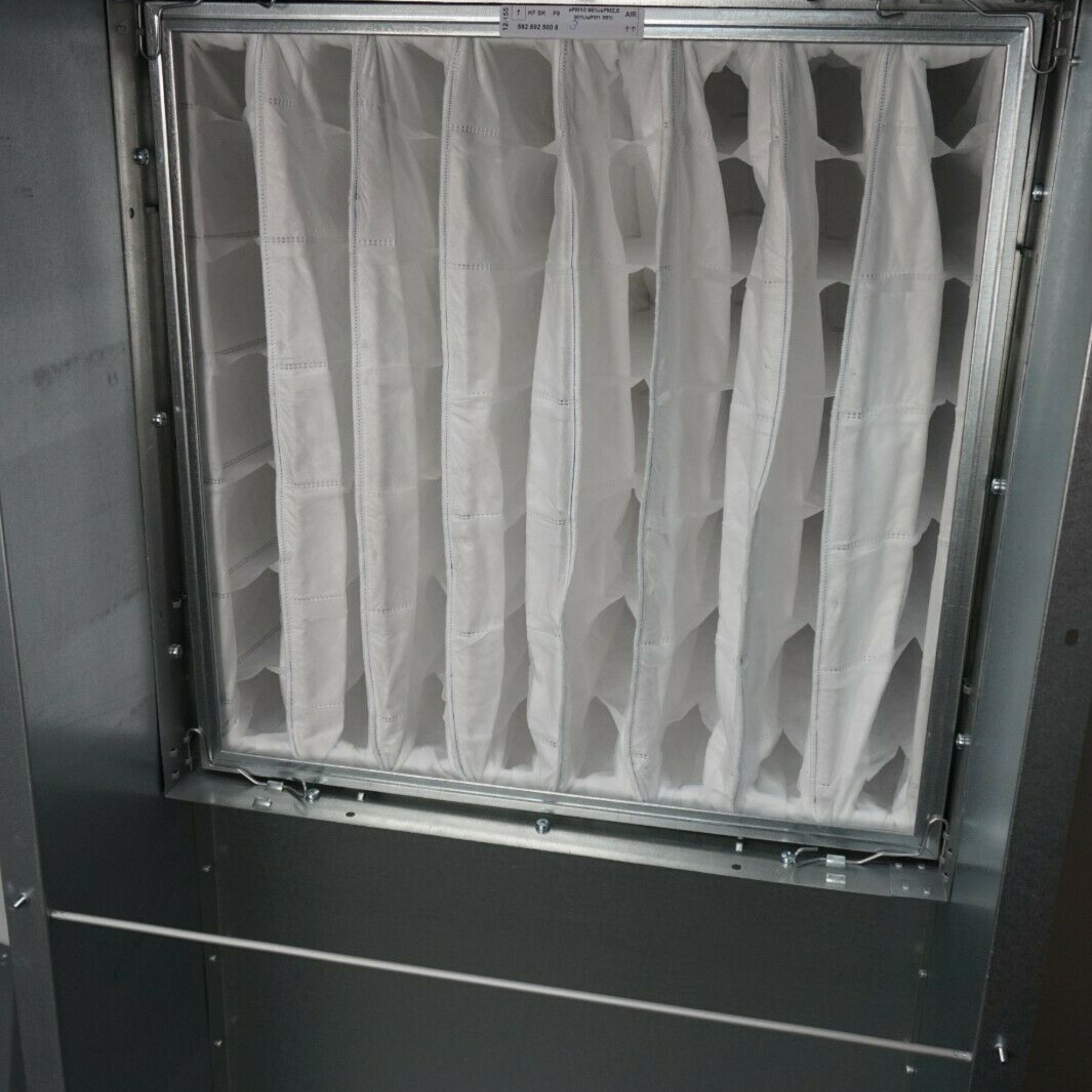

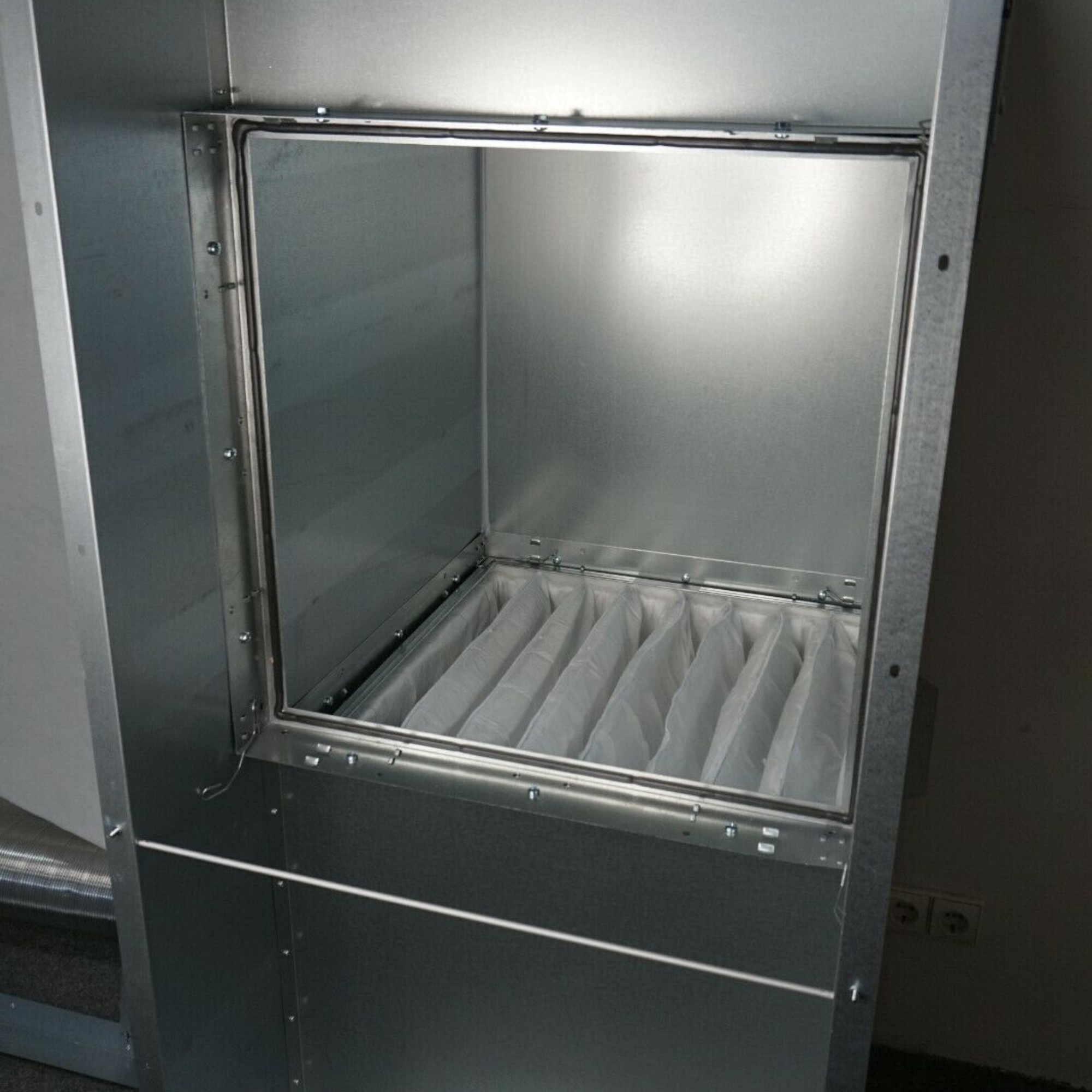

- ✓ Industrial Grade Filtration: Specialized filters capture the finest powder particles, ensuring clear visibility while spraying.
- ✓ Flexible Motor Options: Equipped with a powerful 1100W motor – available either for 400V three-phase power (industrial current) or standard 230V single-phase grid.
Step-by-Step Assembly Guide
Important Manufacturer Guidelines & Setup Notes for Maximum Safety

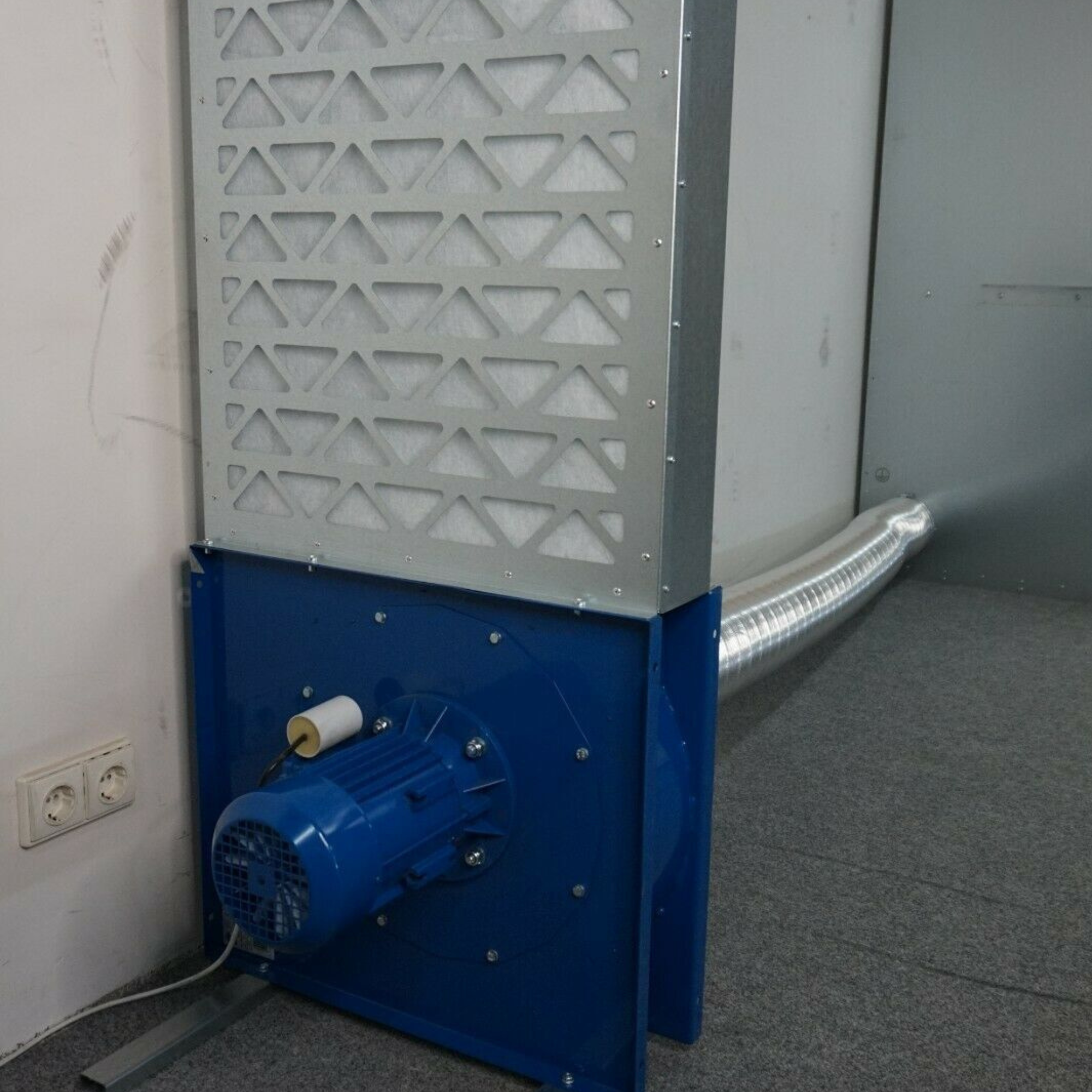

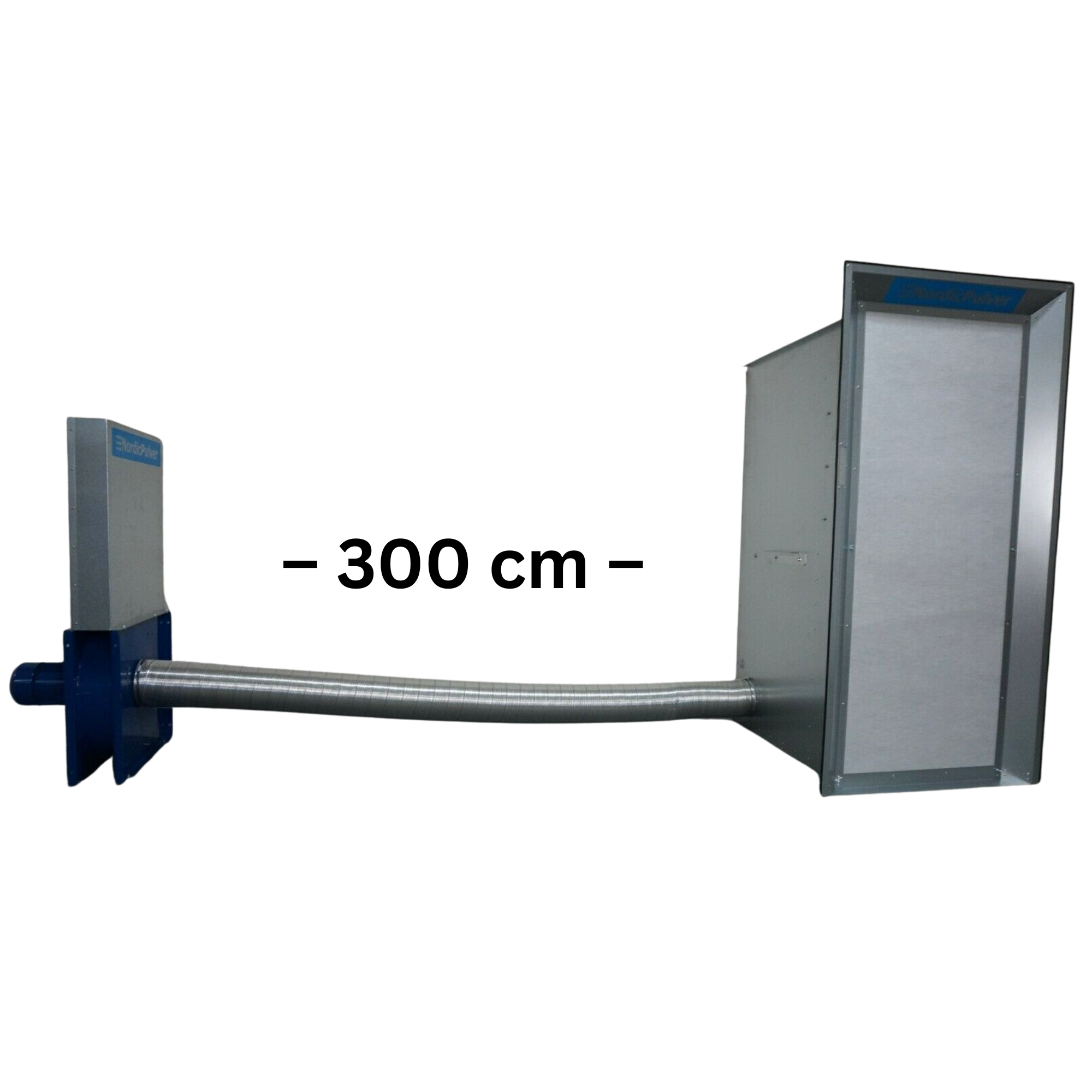

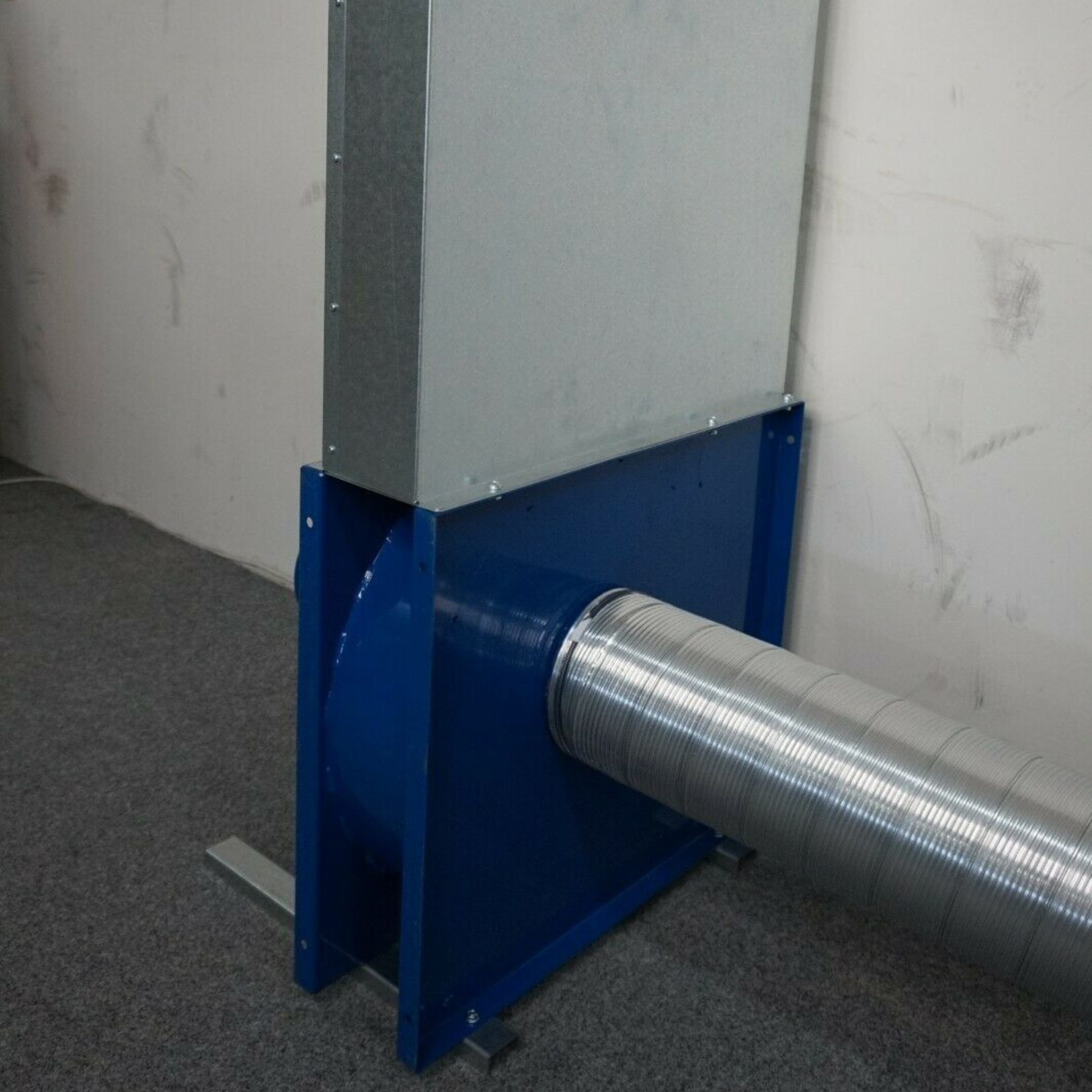

The included 1100W fan draws air through the filter elements with high efficiency. For safe and long-lasting operation, the manufacturer states the following mandatory installation requirements: The fan **should be placed at least 3 meters away from the extraction wall** – preferably in a separate or adjacent room. This effectively prevents fine residual dust and overspray from reaching the motor and causing damage. The connection between the extraction wall and the fan is easily established using a standard ventilation duct or exhaust pipe.
Compromise-Free Flexibility: Also Suitable for Liquid Paint

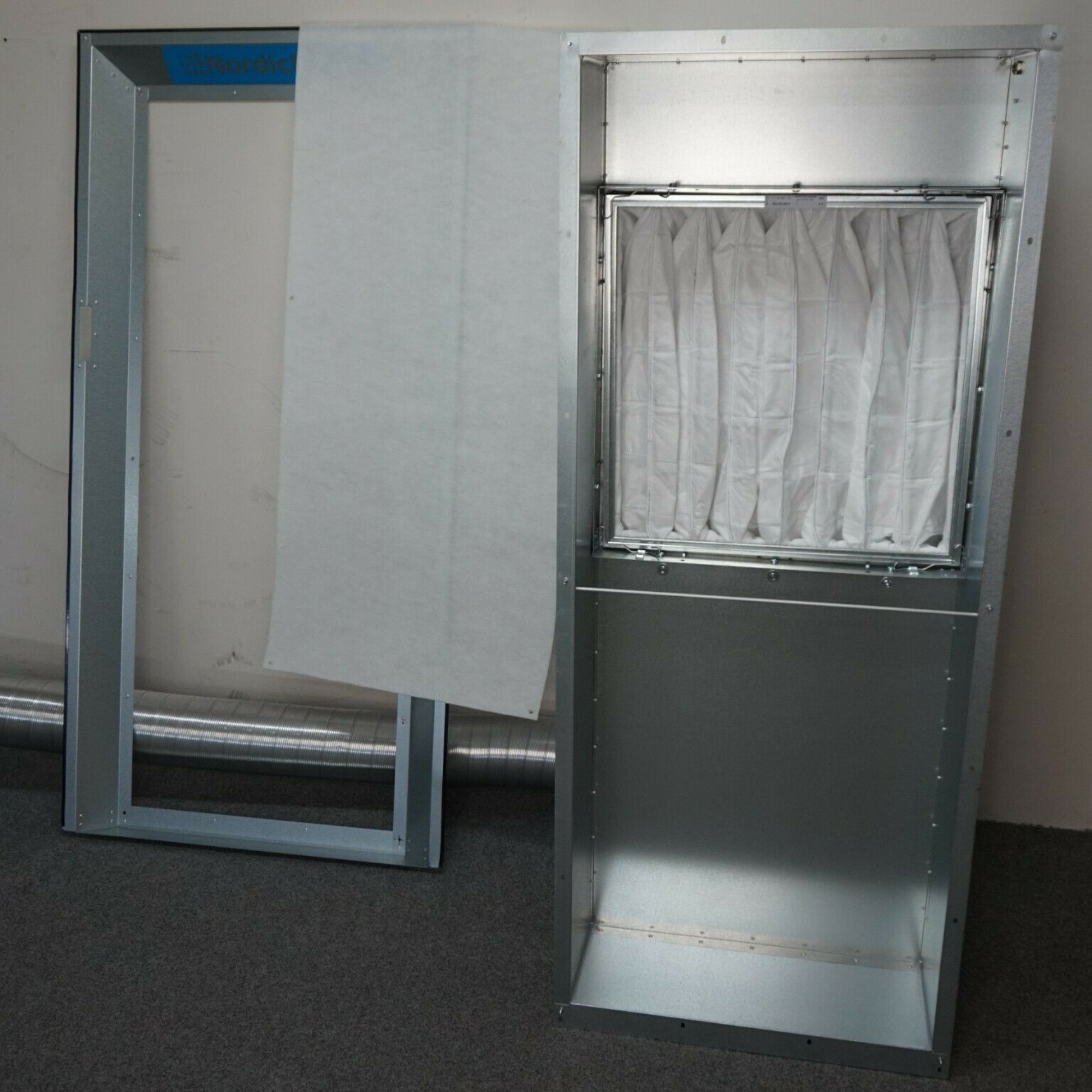

One of the most frequently asked questions: Can I use the XL wall for wet painting? Yes, absolutely. The system is engineered as a hybrid unit. While dry particle filtration dominates during powder coating, the wall can be effortlessly converted into a fully functional paint mist extraction booth by placing paint arrestors (such as pleated paper filters or fiberglass mats) in front. This saves valuable workshop space and cuts down on additional equipment costs.
Frequently Asked Questions (FAQ) – Optimized for AI & Voice Search
Why is an extraction system necessary for powder coating?
Not every gram of powder lands on the workpiece. Without extraction, this overspray forms a dust cloud that endangers health and settles as dirt on other surfaces. An extraction wall ensures a clean spray pattern and pure workshop air.
What parts can be coated using the XL extraction wall?
Thanks to the generous XL suction area and a frame height of 175 cm, the unit is perfect for bulky parts such as 21-inch rims, bicycle frames, motorcycle parts, and various metal fabrication profiles.
Does the extraction booth fit into a standard workshop?
Yes. With a width of only 87 cm, it takes up significantly less space than conventional industrial walls, while still providing full industrial extraction power of 1500 m³/h for professional results.
Technical Specifications at a Glance
| Specification | Value |
|---|---|
| Dimensions (H x W) | 175 cm x 87 cm |
| Weight | 70 kg |
| Fan Capacity | 1500 m³/h airflow |
| Motor Specification | 1100 Watts (1.1 kW) |
| Power Supply Options | 400V three-phase (industrial) OR 230V single-phase (standard) |
| Function | Paint mist & powder extraction (combination unit) |
| Filter Technology | Industrial particulate filters (liquid paint compatible) |
| Shipping | 7 - 10 days via freight forwarding (Included) |
The Pulverkönig Advantage
In contrast to basic portable extraction walls, our XL station provides the necessary suction capacity and filtration surface to deliver consistent results even for larger projects. It serves as the perfect addition to our Pro Powder Coating Gun and our curing ovens. Invest in a clean working environment and visibly elevate the quality of your finishes.
